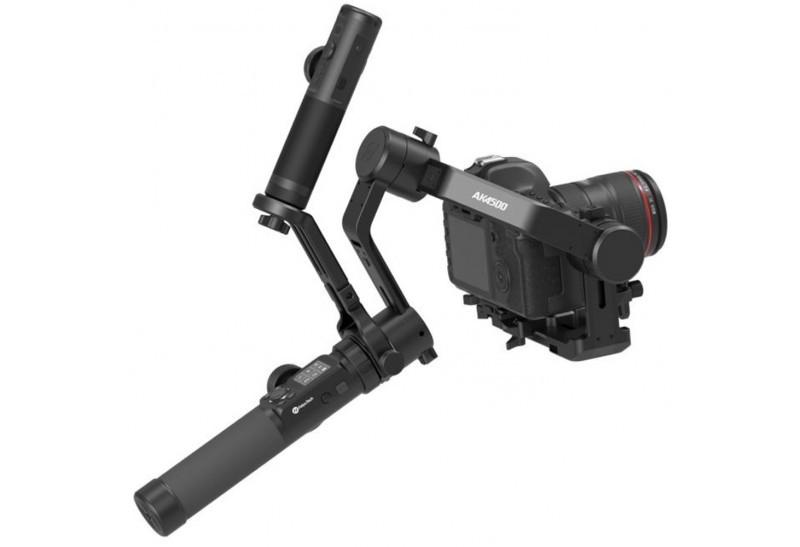

FeiyuTech AK4500 Handheld Gimbal Essential Kit - for Mirrorless & DSLR Cameras
Payload：150g/0.33lb--4600g/10.14lb(lens and other accessories are included, and center of gravity of gimbal is balanced )
Battery: 18650 rechargeable battery*4, 2200mAh, 3.7V, Battery charging via USB port on gimbal is not supported. Please use the charger provided for charging batteries.
Usage Time In Theory: 12 Hours (When camera is balanced with gimbal)
Charging Time: ≥5 hours by the charger provided and the adapter 5V/3A (quick charger is banned). When the indicator on charger give a solid red light, that means batteries are charging. With a solid blue light, batteries are fully charged.
Materials In Main Body: Aluminum Alloys
Weight: 1656g / 3.66lb (not included the battery, shutter release cable, camera, lens and so forth)
Water-Proof Grade: Not Water-proof
- Tilt: 230°(with limitation)
- Roll: 360° (Unlimited)
- Pan: 360° (Unlimited)
- Tilt: +175° to -55°
- Roll: 360° (when parallel to the ground, and works in Dutch-Angle shoot mode, it could be automatically rotated 360°in one circle or several circles)
- Pan: 360° (unlimited)
Quick Release Plate: There are two kinds of quick release plate together in one. Bottom mounting plate is compatible with Manfrotto PL501,Upper quick release plate is compatible with ARCA quick release system, which can be removed from the gimbal together with the camera, and fast switch between two popular quick release systems without re-assembling and re-balancing the camera.
AK4500 Camera Compatibility List (Cable Control)
- Sony a6300 / a6400 / a6500 / RX100 IV / a7R / a7SII / a7RII / a7II / a9
- Canon 5D Mark III / 5D Mark IV / 80D / 6D / 6D Mark II / EOS R
- Nikon Z7 / Z6 / D7500 / D850
- Panasonic Lumix GH4 / GH5 / GH5S /
AK4500 Camera Compatibility List(WIFI Control)
- Sony a9 / a7 III / a7R III / a7S II / a7R II / a7 II / a7 / a7S / a7R / RX100M4 / RX100M5 / RX100 M5A / RX100M6 / a5100 / a6000 / a6300 / a6400 / a6500 / RX0 / FDR-X3000R / HDR-AS50R / QX1 / RX1RII / WX500 / HX90
- Canon EOS 80D / EOS 6D / EOS 6D Mark II / EOS 5D Mark IV / EOS 70D / EOS 77D / EOS R / EOS 200D / M50
- Panasonic DMC-LX100 / DMC-LX10 / DC-ZS70GK / DC-ZS220GK / DMC-GH4 / DC-GF9XGK / DC-GF9KGK / DC-GH5SGK-K /DC-GX9KGK-K / DC-GF10KGK / DMC-ZS110 / DMC-GX85 / GH5
Touchscreen LCD Smart Panel
Low-power LCD touch panel, in combination with the joystick and handwheel, allows for easy adjustment of all the gimbal's settings. It slides left/right to display different setting options.
Three USB Ports
Multi-function USB extension interface makes the expansion unlimited.

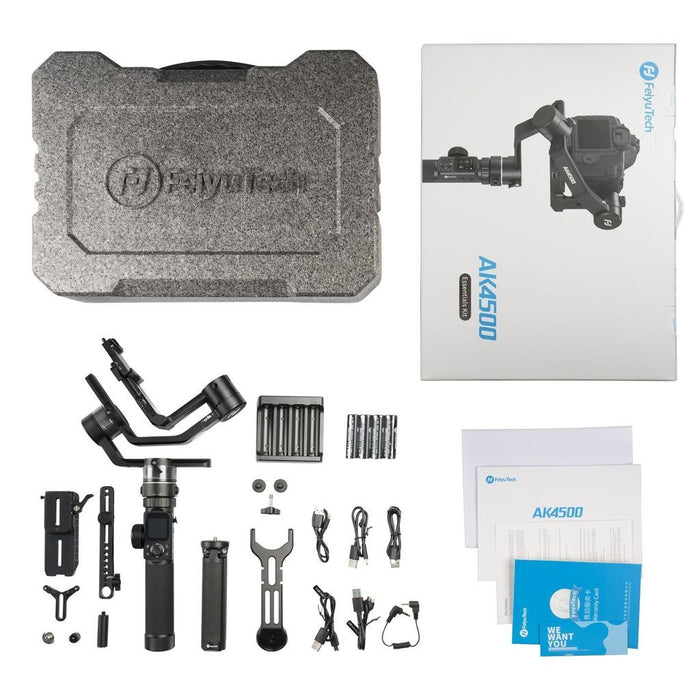

- AK4500 Gimbal
- 18650 Li-ion Battery*4
- Battery Charger
- Multifunctional Bracket
- Quick Release Plate
- Lens Support Frame
- Control Cables
- Micro USB Charging Cable
- Thumb Screws
- Secondary Quick Release Plate
- Versatile Arm
Nine Extended Ports in Single Handle AK4500 Gimbal
- One 1/4 thread hole on the top of sliding arm of tilt axis for installation of extension support or other accessories.
- One 1/4 thread hole behind tilt motor.
- USB port and 3.5mm round hole Under mounting plate to connect and control camera.
- Each USB Port at the back and in front of mounting plate to connect external AFK II follow focus kit.
- 1/4 thread hole at the left and right side of pan motor to extension support other accessories, such as monitor, Mic and so forth.
- 1/4 thread hole at the bottom of the handle to mount Tripod or other accessories.
* Please note: Camera & Tripod shown in the images are not included with this Gimbal & needs to be purchased separately.
