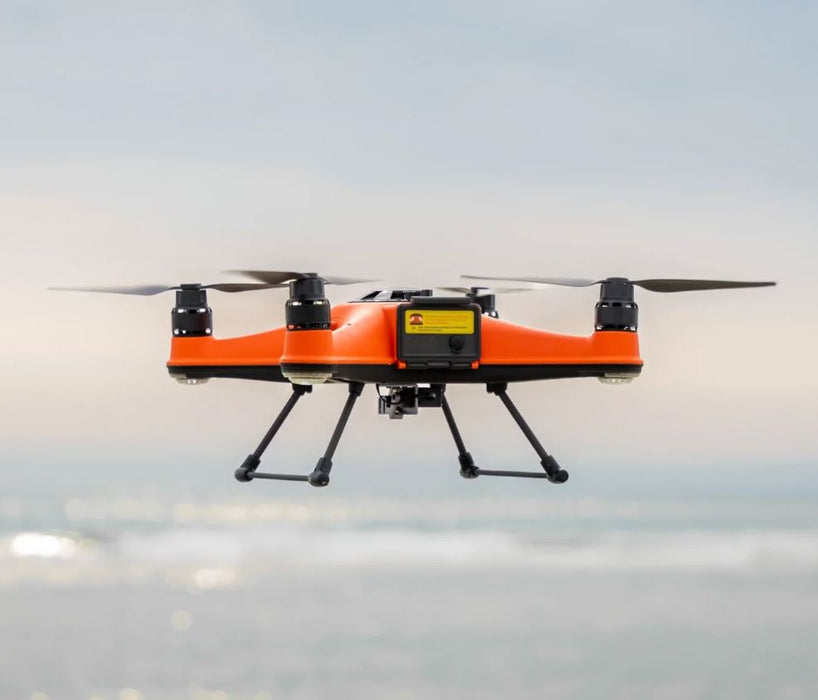

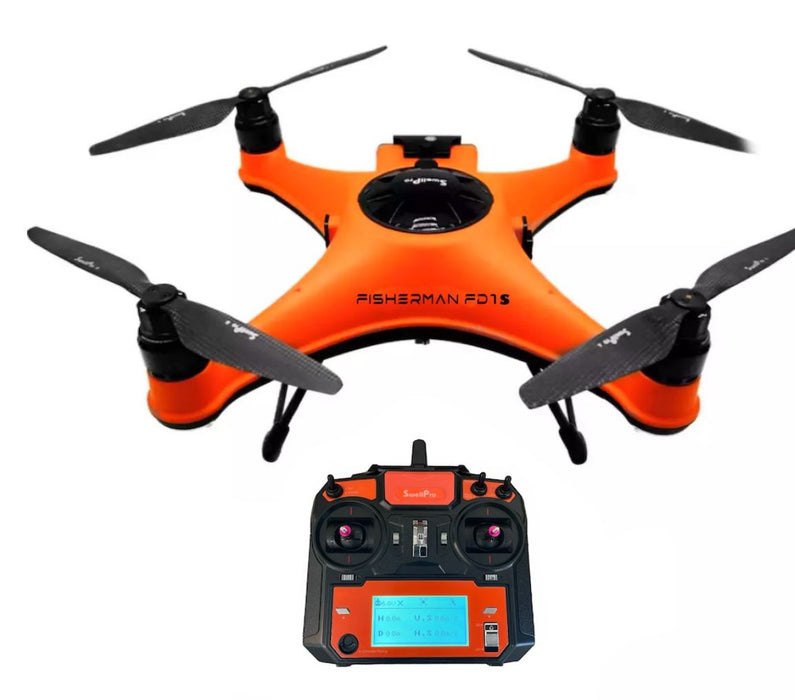

The FD1S provides some great additional features to the FD1+ including longer battery life and additional sensors to assist with stability and control when flying low or coming in to land on the beach.
Brand new model from Swellpro with a number of important upgrades from the FD1+ making it more stable and easier to fly, including additional sensors and a Smart Battery, which makes the FD1S a great fishing drone utilising the latest technology.
Upgraded Features of the FD1S vs. the FD1+
-
Intelligent Battery System: It uses a 4500mAh intelligent battery with an actual capacity of 8300mAh, and is built-in with an advanced Battery Management System (BMS), which acts like the “intelligent brain” of the battery, monitoring voltage, current, andtemperature in real time and providing comprehensive
-
Safety Enhancement: New Bottom TOF Altitude Downward Facing Sensor , Supporting Automatic Slow Descent Protection when the drone is 80cm above the landing site
-
Upto 33% Longer Battery Life than the FD1+
- Faster charging of the Drone Battery
GET YOUR BAITS OUT FURTHER AND FASTER
The SwellPro Fisherman FD1S is the budget briendly fishing drone designed either for those who are new to drone fishing or a seasoned fisherman who wants a no-nonsence water resistant fishing drone that will carry decent baits. Without complexities, the FD1+ gets back to its most essential job – taking your bait where it’s never gone before, making it the most cost-effective water resistant drone, that is capable of carrying over 2KG on the market.
BUILT FOR LIFTING SERIOUS BAITS
2.2 KG BAIT CAPACITY (20% MORE THAN THE PREVIOUS MODEL)
The new FD1S’s propulsion system is optimized to provide higher strength and higher efficiency than its predecessor, allowing the drone to lift baits weighing up to 2.2 kg with astonishing ease. This means that anglers can take advantage of heavy-duty baits to attract the biggest fish, confident that the drone will handle the load reliably.
SALTWATER RESISTANT
The Everything from the motors to the electronics to the Drone Shell itself has been designed from the goround up to to be saltwater resistant and able to withstand wind and rain conditions of New Zealand’s Coastal environment.
DUAL PAYLOAD RELEASE
The FD1+ is equipped with an innovative dual payload release for dropping mutiple baits on the same trips- saving time and battery

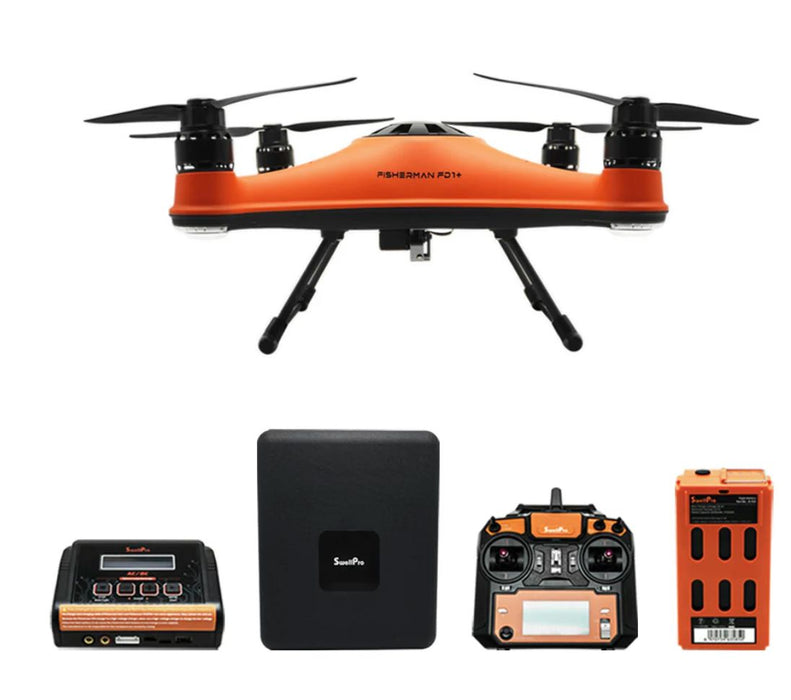

WHAT’S IN THE BOX?
1 X Drone
1 X Remote Controller
1 X Dual Payload Release
2 X Propellers (PAIR)
1 X Flight Battery
1 X Battery Charger and Cable
1 X Power Adapter
1 X Carry case
SPECIFICATIONS
AIRCRAFT
| Waterproof Rating: |
IP65 |
| Weight: |
1578g (Without battery); 2291g (With Battery) |
| Max Take-Off Weight: |
4491g |
| Size: |
(W/O Propeller): 628*628*218mm (With propellers); 372*372*202mm (Without propellers) |
| Max Ascent Speed: |
3m/s |
| Max Descent Speed: |
2m/s |
| Max Flight Speed: |
GPS:10m/s; ATTI:18m/s (Without payload), 14m/s (With max payload) |
| Max Tilt Angle: |
30° |
| Max Altitude From Takeoff Point: |
120m default |
| Max Flight Distance: |
1300m |
| Max Image Transmission Distance: |
1300m |
| Max Payload Capacity: |
2200g(4.8lb) |
| Max Wind Speed Resistance: |
18m/s |
| Max Flight Time(Hovering): |
36 mins (no wind & no load) |
| Hovering Precision: |
±0.5m |
| Working Temperature: |
-10°C~40°C |
Satellite Positioning Systems:
|
GPS + Galileo + BeiDou |
REMOTE CONTROLLER
| Size: |
174*89*190mm |
| Weight: |
378g(Without battery) |
| Operating Frequency: |
2.402-2.478GHM |
| Bandwidth: |
500KHz |
| Modulation Type: |
GFSK |
| Sensitivity: |
-92dB |
| Transmitter Power: |
< 20dB |
| Battery: |
6V (1.5V AA*4) |
| Channel: |
6 |
FLIGHT BATTERY
| Nominal Capacity: |
4500mAh |
| Nominal Voltage: |
23.1V |
| Max Charging Voltage: |
26.4V |
| Type: |
6S LIHV |
| Size: |
153.6*82.4*48.3mm |
| Weight: |
716g |
| Working Temperature: |
0°C – 40°C |
| Charging Time: |
120 mins |
| Max Charging Current: |
5A |
CHARGER
| Input: |
100~240V |
| Output: |
22.2V-6A |
| Max Charging Power: |
150W |
| Supported Battery Types and Cells: |
6S LIHV |
| Size: |
143*100*60mm |
| Weight: |
454.6g |
| Working Temperature: |
0°C ~60°C |
| Storage Temperature: |
0°C ~60°C |
BAIT RELEASE
SwellPro Fisherman FD1+ Drone is equipped with a electronicly controlled mechanical bait release.
| Waterproof Rating: |
IP65 |
| Max Payload Capacity: |
2200g(4.8lb) |
| Size: |
75*50*37.5 mm |
| Weight: |
100g |
