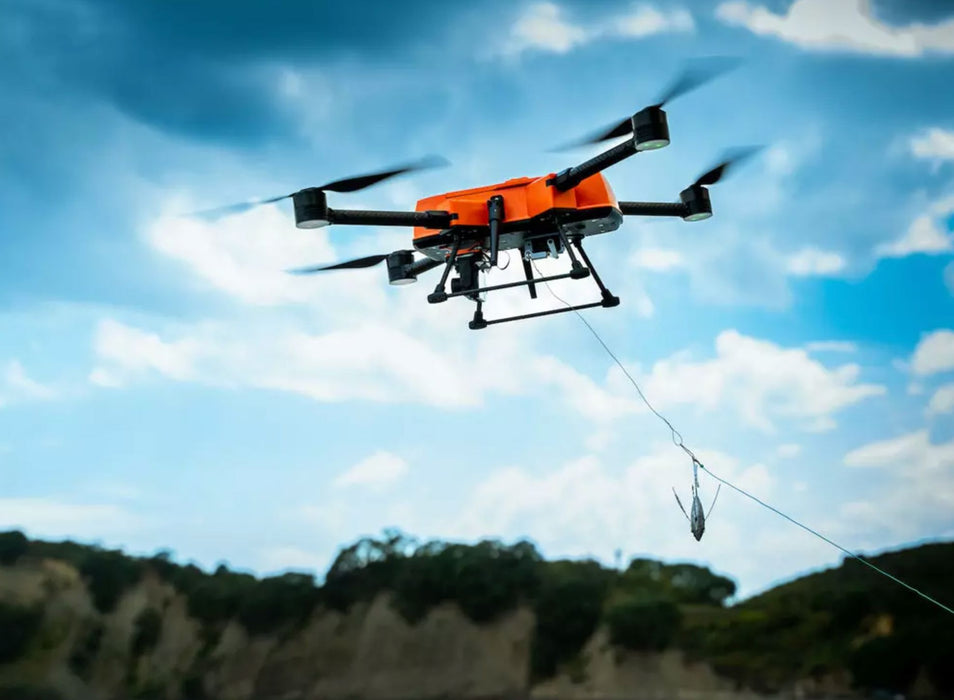

Known as a Heavy Lift Drone, the Fisherman Max is able to comfortably lift 3.5KG of Payload so you can get those big baits out to the fishing drone quickly and easily.
The Fisherman Max also has the brand new feature of not needing calibration as the drone already has a geomagnetic database built right in for every location in the world, meaning that the drone already knows the beach you are at!
Specifications

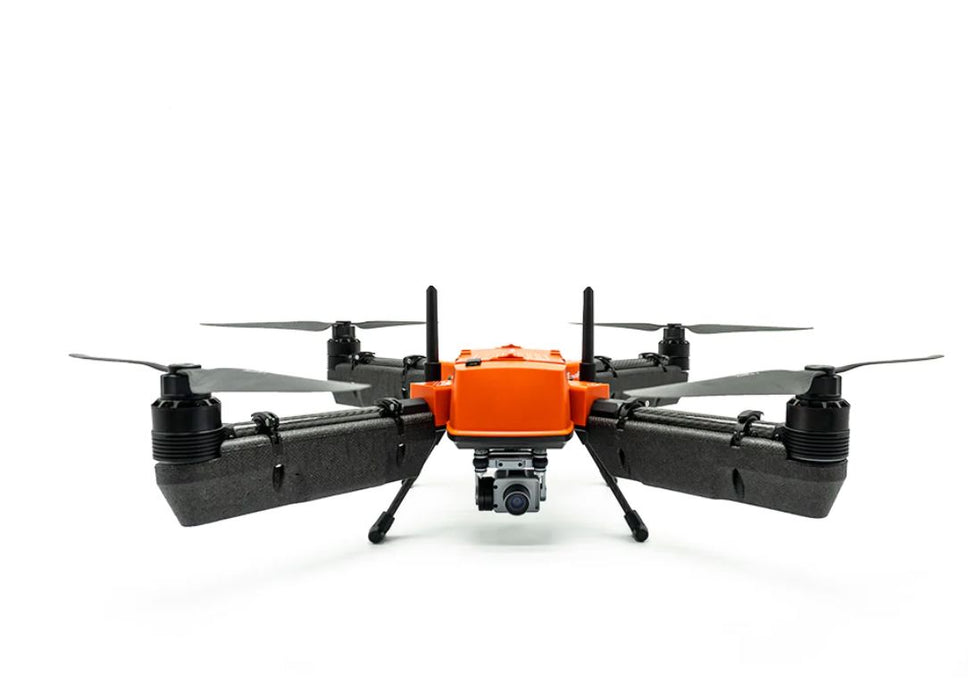

Aircraft
Water resistance rating: IP65
Drone weight (including battery): 8.3 lbs / 3.78 kg
Size (w/o propeller): unfold: 20*20*7.5 inch / 522*522*192 mm ; fold: 12*10.5*7.5 inch / 306*266*192 mm
Max ascend speed: 7 mph / 3 m/s
Max descent speed: 4.5 mph / 2 m/s
Max flight speed: ATTI: 45 mph / 20 m/s ; GPS: 22 mph / 10 m/s
Max tilt angle: 25°
Max flight altitude: 1 mile /1500 m
Max flight distance: 1 mile / 1500 m
Max image transmission distance: 0.7 mile / 1200 m
Max payload capacity: 7.7 lbs / 3.2 kg
Flight time: up to 28 mins ( no wind & no load)
Max wind speed resistance: 40 mph / 18 m/s / 35 knots
Hovering precision: ±1.6 feet / ±0.5 m
Satellite positioning system: GPS/Galileo
Motor: 4114 ~ 400Kv
ESC: 40A
Propellers: #1655 carbon fibre
Operation frequency: 2.405 ~ 2.475 GHz | 5.725 ~ 5.825 GHz
Transmitter power (EIRP): <33 dBm (FCC), <20 dBm (CE) | <33 dBm (FCC), <14 dBm (CE)
Working temperature: 14℉ ~ 104℉ / -10℃ ~ 40℃
Certifications: CE/FCC/ROHS/RCM

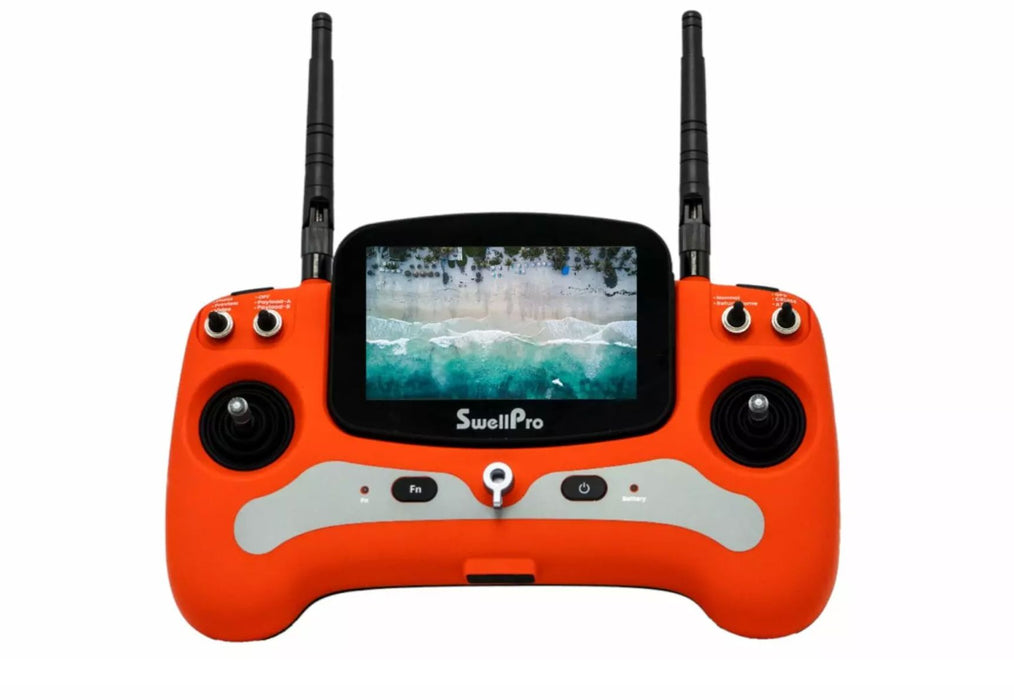

Remote Controller
Weight: 1.56 lbs / 709 g
Size: 11*7.5*3 inch / 276*190*74 mm
Operating Frequency: 2.405-2.475 GHz; 5.725 – 5.825 GHz
Transmitter Power (EIRP): 2.405-2.475GHz: <26 dBm (FCC), <20 dBm (CE)
Latency: 20 ms
Battery: 3000mAh
Working time: 4 hours
Charging time: 3 hours
Power input: 5V/2A USB-C
Screen size: 5 inch
Screen resolution: 800*480 px
Screen brightness: 500 cd/m2
Aspect ratio: 16:9
Language: English
Working temperature: 14℉ ~ 104℉ / -10℃ ~ 40℃
Flight Battery
Capacity: 4500 mAh
Voltage: 22.2V
Type: 6S LiPo
Size: 8.6*4.7*2.5 inch / 219*119*65 mm
Weight: 2.8 lbs / 1255 g
Working temperature: 32℉ ~ 104℉ / 0℃ ~ 40℃
Charging Time: 80 mins
Max Charging current: 8A
Charger
Input: 100 – 240V
Output: 25.2V
Max charging power: 200W
Supported battery types and cell: 6S LiPo
Size: 5.6*4*2.4 inch / 143*100*60 mm
Power cable: 3.9 feet / 1.2 m
Charging cable: 1.6 feet / 0.5 m
Weight: 1 lbs / 454.6 g
Working temperature: 32℉ ~ 140℉ / 0℃ ~ 60℃

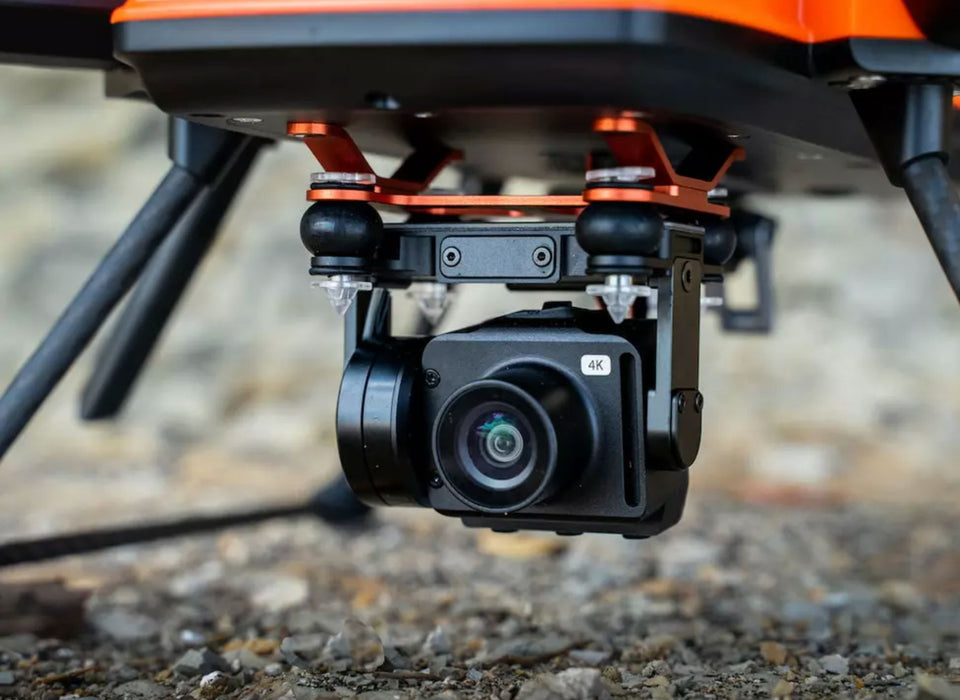

Camera
Water resistance rating: IP65
Stabilization: 1-axis (tilt)
Tilt range: -90° to 0°
Weight: 0.38 lbs / 176.5 g
Size: 3.1*2.7*2.7 inch / 79*69*70 mm
Image sensor: SONY IMX377
Lens: F4.53mm f/2.65, FOV: 92.6°
ISO range: 100 – 3200
Shutter speed: 16 – 1/16000 s
Video resolution: 4K:30fps | 2.7K:60fps | 1080P:120/60/30fps | 720P: 240/120/60fps
Photo resolution: 4000*3000 (4:3), 3840*2160 (16:9)
Max video bitrate: 60 Mbps
Photo format: JPEG / DNG (RAW)
Video format: MP4 /MOV
Supported memory card: microSD card with a maximum capacity of 128GB, write speed ≥ 60 MB/s, recommend using Class 10 or above & UHS-1 rating
Working temperature: 14℉ ~ 104℉ / -10℃ – 40°C

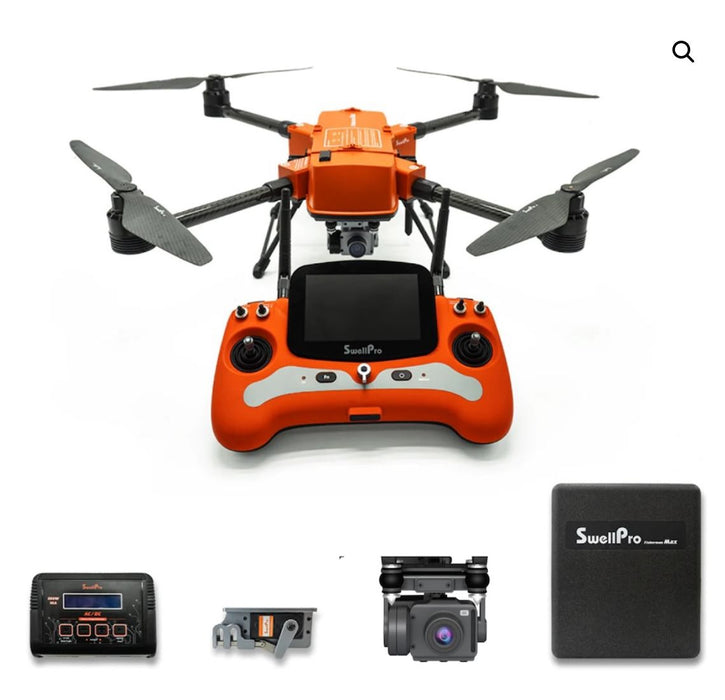

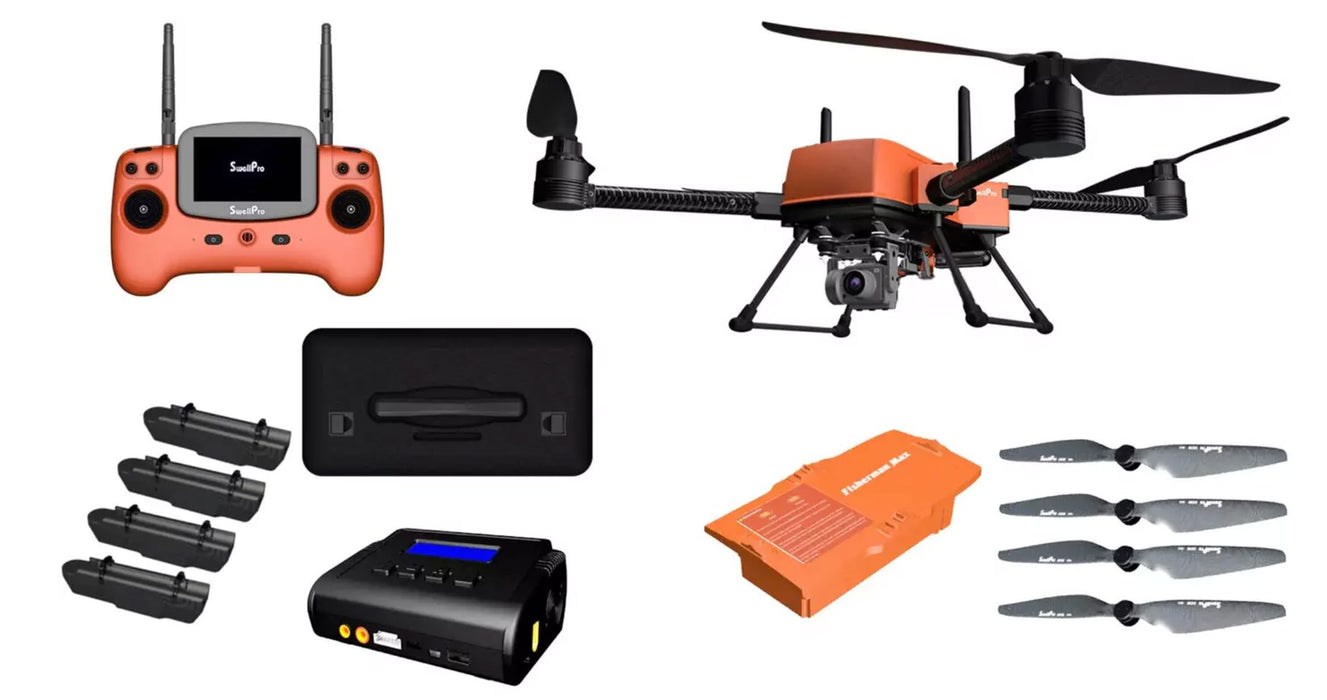

What’s in the box?
Aircraft x 1
Remote controller x 1
Flight battery x 1
Charger x 1
Propellers x 2 (pairs)
